SBS 2008 / 2011 adding an SSL certificate

[Note: some links point to SBS 2008 configurations, some to SBS 2011, the procedure is the same for both]

Just a quick comment to address the many internet posts suggesting that SBS requires a multi-name SSL certificate (UCC – Unified Communications Certificate).  This is not true.  SBS is designed to use a simple, inexpensive, single name certificate, and it is quite easy to install.  A basic GoDaddy or other vendor certificate is all that is required.  Sean Daniel outlines the process very nicely in his post entitled “Installing a GoDaddy Standard SSL Certificate on SBS 2008 “.  Keep in mind the FQDN for your site as recorded in your public DNS records, the certificate name, and public name used in the “Internet Address Wizard” (see step #7), all must be exactly the same.  As a mater of fact, although it is possible to use a UCC certificate, the wizard will not install it for you, you would have to do so manually.  There is no need for the additional cost or time involved with multi-name certificates.  (The link below will take you to the Godaddy site and should have a menu bar at the top offering you a very good first year discount)

Go Daddy $12.99 SSL Sale!

The primary argument for using a UCC cert is to make use of auto-discovery.   Though you do not need auto-discovery, if you wish to make use of it you still do not need a UCC certificate.  You can in fact configure auto-discovery using a single name certificate and creating an SRV DNS record by following the instructions; “Setting up Autodiscover for SBS 2011

Alternatively, you can avoid buying an SSL certificate at all.  After running the SBS “Internet Address Management Wizard”, a self-signed certificate is generated in the SBS Share: \\SBSname\Public\Downloads\Certificate Distribution Package  .  Machines that are joined to the domain after this will have the certificate automatically installed.  If you generate a new certificate (by re-running the wizard), or have non-domain joined computers or devices, you need to manually copy and install the certificate.  To distribute / install the certificate on the PC’s, please see “How Do I Distribute the SBS 2008 Self-Signed SSL Certificate to My Users?”  This is often not as easy to do on other devices such as smart phones.  Therefore using a 3rd party certificate becomes much more attractive, as nothing has to be installed on the connecting device.

Should you have a dynamic public IP at the SBS site, I recommend reading “Using DDNS services with SBS 2008/2011” which outlines using a dynamic IP, a DDNS service, and configuring DNS and certificates.


SBS 2008/2011 Renew 3rd party Certificate

It seems many Small Business Server 2008 existing third party SSL certificates are expiring and some people are confused about how to renew.  Instructions on the internet often involve lengthy solutions involving the IIS management console.  The forums show that these methods frequently result in failure to import the certificate or it is not properly bound to the default SBS Web Sites.

SBS makes this process very easy. Once again, use the wizards, use the wizards, use the wizards…

Note: This article addresses SBS 2008 and SBS 2011 Standard. If running SBS 2011 Essentials I recomend reviewing Robert Pearman’s Blog article; Renew your SSL Certificate : SBS 2011 Essentials

I should confirm this article addresses 3rd party SSL certificates, if you are using an SBS self-signed certificate, you simply need to run the “Fix My Network Wizard” to renew.

Open the Windows SBS console and browse to Network | Connectivity | highlight “Certificate” | in the right hand  menu select “”Add a trusted certificate”

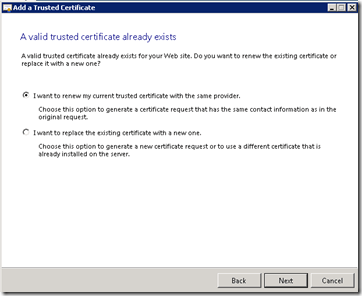

Choose “I want to renew my current trusted certificate with the same provider”

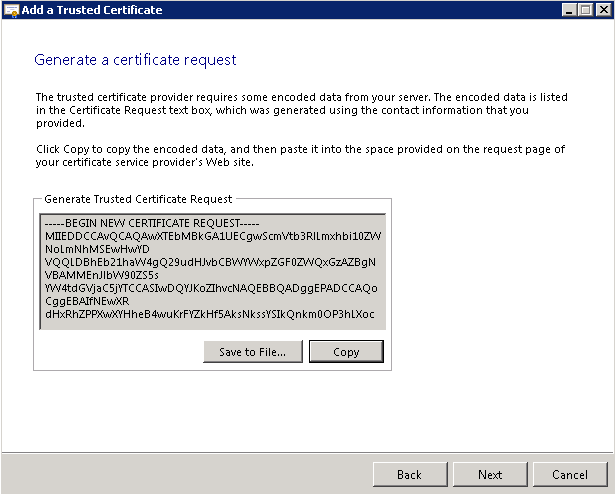

Allow the encrypted certificate request to be generated and click copy.  You could go from here directly the the vendor from whom you are going to purchase and renew the certificate, but there are often delays with process so I recommend pasting to Notepad to retain the text file for a few minutes.  Alternatively you can click the “save to file” button and accomplish the same thing.

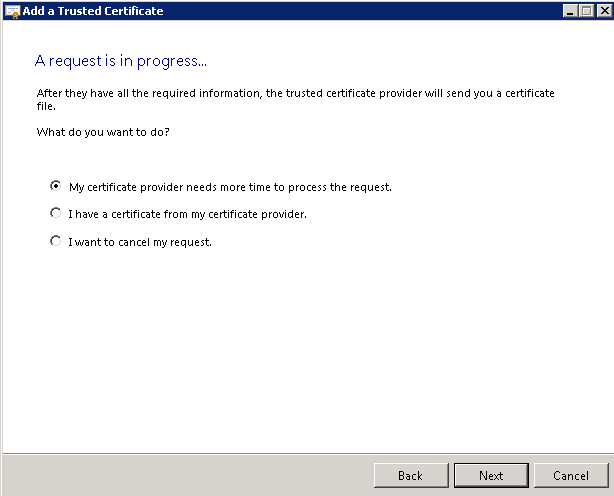

If you think the provider will supply the certificate immediately you can leave this window open and wait, but most often you are best to put the process in “suspend mode” by selecting “My certificate provider needs more time to process the request”

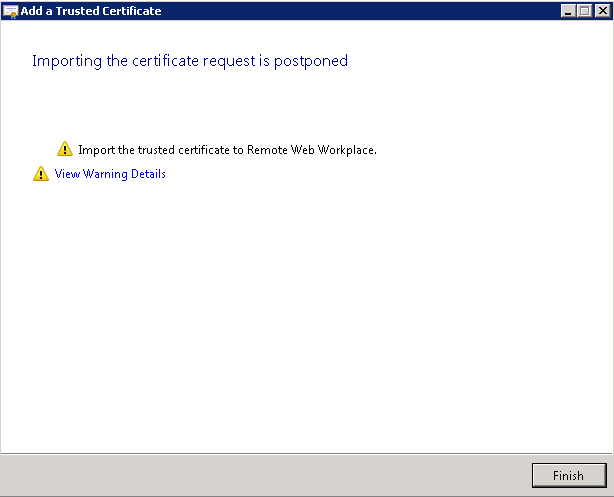

….and complete the wizard.


Next, log onto your certificate provider’s webs site, purchase the certificate renewal, create the certificate by copying and pasting the saved contents of Notepad (the encrypted CSR text) when prompted, wait for your certificate approval (usually sent by e-mail), download the certificate, and save to a location of your choice on the server.

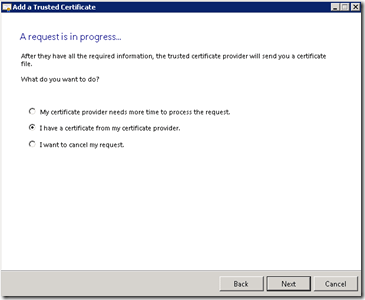

Now you can import the certificate.  Once again open the Windows SBS console and browse to Network | Connectivity | highlight “Certificate” | in the right hand menu select “”Add a trusted certificate”.  This time choose “I have a certificate from my certificate provider”.

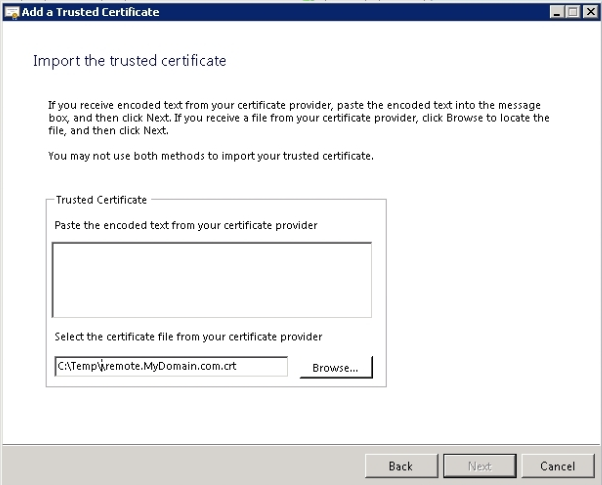

Browse to the location where you saved the certificate.

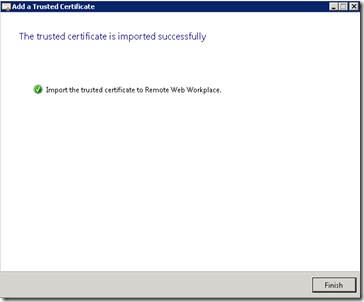

….and complete the wizard.

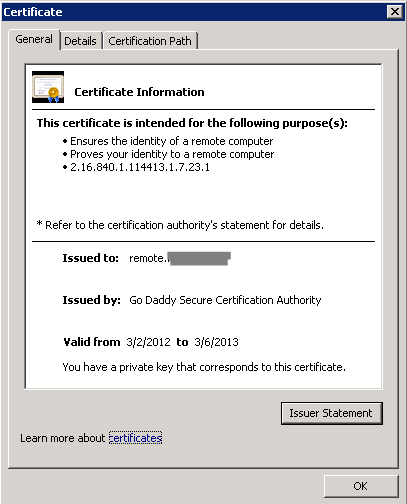

You can confirm your certificate has been imported / updated by choosing “View certificate properties” from the same Windows SBS console window, and reviewing the expiry date.


Using DDNS services with SBS 2008/2011

Often a small business cannot justify the cost of acquiring a static IP from their ISP. It is still possible to host e-mail and other services using a dynamic public IP, but you will need to use a DDNS service (Dynamic Domain Name Service). The following instructions use services offered by No-IP ( link below), my preference, but similar services are offered by other vendors such as .

The following assumes you have already purchased a domain name from a registrar. There is no need to host it with your DDNS provider but if they support your domain suffix, such as .com, you can transfer it to them for management simplicity if you wish. You can also purchase a domain through most DDNS service providers if you do not already have one. However, for the purpose of this article it is assumed the domain is with another registrar.

Reliable Dynamic DNS

Set up DNS records:

I recommend purchasing and configuring the necessary services first, followed by making the changes with your domain registrar so that there is no interruption of service if the domain name is already in use. You will need to open an account with No-IP and then purchase their Plus Managed DNS service ($24.95/year). To locate, on the No-IP menu choose Services, managed DNS, No-IP Plus, learn more. Then simply enter your public domain name, click “add my domain”, and then proceed to check out.

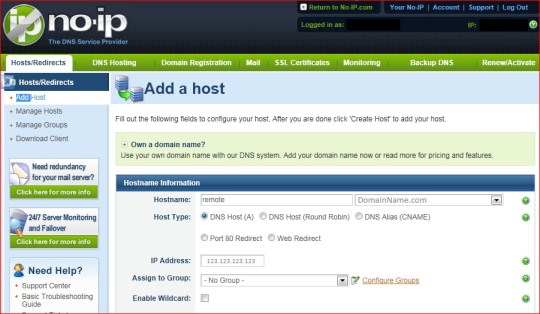

Once complete, you need to configure your DNS records. To access the management screen select “Your No-IP” from the top of the screen, DNS hosting, then modify next to your domain name. No-IP sets up assumed common DNS records like ftp.DomainName.comwhich you can leave, or I would recommend removing and just creating the records you need. Click on “Add a host” . In the dropdown list to the right of Hostname, select your domain. In the window to the left enter the name you will use to connect to your server. This can be anything you like but if using a certificate, self-signed or purchased, it must match this name. Common names are mail, the name of the server, or the default with Small Business Server 2008 is “remote”. Click the “Create Host” button at the bottom to save.

Next you need to create an MX record for mail delivery. The MX record would usually uses the Host record you just created, but if you plan to use a different Host name you need to repeat the above process for the additional Host record.

Return to the “Managed Hosts” page and click on “Modify” next to (the root). In the bottom section of the page under mail options enter the Host record you created (not an IP) and click the Update button.

Chances are if you are using a DDNS service you have only one server (one MX record). You may want to consider a backup MX service such as the one offered by No-IP. This is added as a second, lower priority, MX record and in the event your server is off line, the No-IP service stores any mail destined for your server for up to 7 days until your server is back on line. It then automatically forwards all mail to your server. One of the nice features of the No-IP Backup MX service over others is it offers an online usage report. Often you may not be aware your server was off-line due to an ISP outage. The Usage report will record when and how long.

If you have other services such as a web page hosted with a 3rd party or at a second site, you need to create another host record for www.DomainName.compointing to the appropriate IP. If not an IP and you need to redirect to another URL you can use the “Web Redirect” option.

Configure the DDNS client:

The DDNS client needs to be downloaded and installed on a PC or server on your network that is always on, and does not sleep or hibernate. It will monitor your public IP and update No-IP should the IP change. Many newer routers support DDNS services internally, but they require the “Custom DNS” option for No-IP, which most do not. The best bet is to install the No-IP client on your server. It can be downloaded from the No-IP site by choosing the Download tab on the home page.

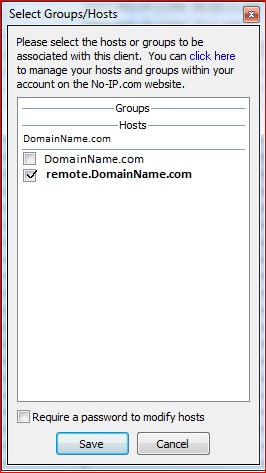

Once installed, start the No-IP DUC client from the programs menu. Enter your e-mail address and password you used to set up your No-IP account. There should be a popup window as below, but if not click “Select Host” in the client management window. Check the box next to the Host record or records you wish to update with this public IP, and save. I do not recommend choosing the root domain unless you want ALL traffic for your domain directed to this IP.

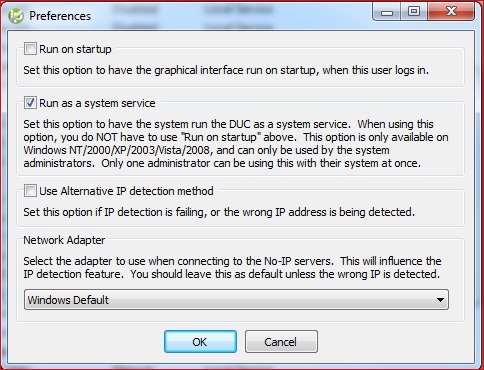

Next you need to make sure this runs at all times even upon reboot by running the No-IP client as a service. In the No-IP client select file, preferences, check the box “Run as a system service”. At the bottom, if there is only one network adapter installed, you can leave as “Windows Default”. If more than one network adapter select the appropriate one from the drop down list, then click OK to save. This should be the Internet facing network adapter.

You can close the No-IP client but for future reference note there are some useful troubleshooting tools built in for testing your server, especially to see if the appropriate ports are open for the services you are offering via the Internet.

Set Domain to use No-IP DNS servers::

The final step is to change your Domain registrar to use No-IP’s DNS servers. With many registrars such as you can make these entries yourself, but with some others you have to call or open a trouble ticket and have the service provider make the changes. No-IP’s DNS servers are listed below. You do not have to use all 5. ( ( ( ( (

Note: DNS changes can take up to 48 hours to propagate the various Internet DNS servers, however usually less than 8 hours. One of the advantages of a DDNS service is in the future if your IP changes due to a move or ISP change, the DNS changes are immediate. For this reason some technicians choose to use a DDNS service even if using a static IP as it can make for faster recovery in a disaster situation, when a server has to be set up in a new location.

One possible issue with hosting your own services and using a dynamic IP is the ISP blocking specific ports such as 25 which will not allow you to host a mail server. There are services such as NO-IP’s “Mail Reflector” which allow you to use ports other than the standard port 25.

SSL Certificates:

Once your DDNS service is configured you may want to purchase a 3rd party SSL certificate from a vendor such as . The certificate eliminates the need of installing the SBS self-signed certificate on remote devices connecting to your server. This will work with a dynamic IP and a DDNS service but as mentioned the name created by the SBS to be used remotely (in our example, the public DNS record, and the SSL certificate must all be the same.  For details regarding installing an SSL certificate on SBS 2008/2011 see:
