Access a resource using the same internal and external FQDN

For simplicity there are many reasons you may want a single URL or FQDN to access a resource internal or external to your corporate domain.  If the internal and external domain names are the same it can sometimes cause DNS issues resolving the public domain name from the corporate network.  I am often asked about this in reference to web sites; “why is our website accessible from anywhere but our buisiness network””?”   For example you want to access www.net-works.ca from a network that uses the internal domain net-works.local.  The internal DNS server manages DNS for net-works so it doesn’t pass on the request to the forwarder, but it also doesn’t have a DNS record for the www Host.  The simple solution is to create an internal zone for the host name you are trying to access. SBS 2008/2011 did this automatically for “remote” so that the same URL could be used internally and externally.  This technique can be used for access ing websites, dvr systems, or anything you like that uses a FQDN.

To do so open the DNS management console, expand the folders under your server name, right click on the “Forward Lookup Zones folder, and select New Zone.  A wizard starts, click next and you can select the zone type.  Accept the defaults, Primary Zone and next.

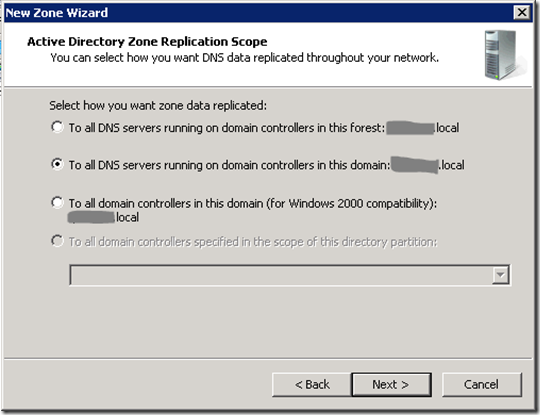

Select “To all DNS servers running on domain controllers in this domain”.

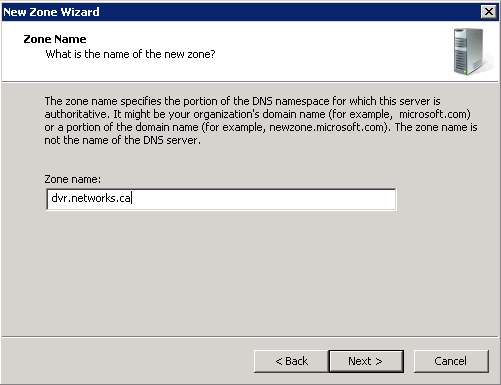

In this case I am going to set up a universal URL for access to a DVR system, so I will enter dvr.net-works.ca  This could be www, remote, or what ever meets your needs.  Keep in mind for external access you must set up the DVR, or matching,  Host record with whichever service manages DNS for your public domain.

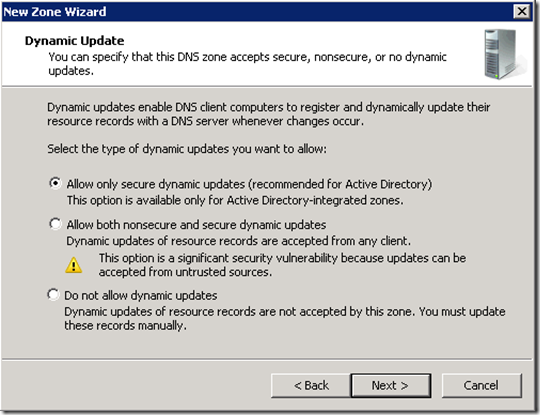

Again accept defaults, and click next, and finish.

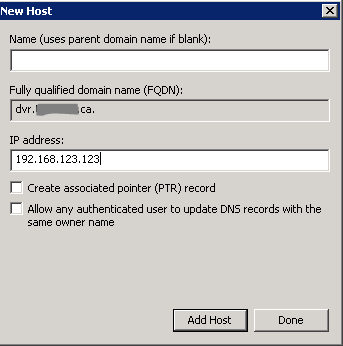

Now right click on the new zone folder and choose “New Host (A or AAAA)” record. Finally, again accept defaults except insert the IP address.  In this case it is an internal IP.  There should be no need for a PTR record creation.


When complete it should look similar to this:


How to join a Windows Domain using a VPN

There may be occasions where you need to join an off-site computer to an existing domain at a remote office.  Most often this would be in a situation such as a satellite office which is part of a larger corporate network and there is a site-to-site VPN in place.  Though a site-to-site VPN is by far the easiest way to join, it can be done using a Windows VPN client, which will be discussed further on in this article.  The primary problem encountered when joining the domain is DNS, but this is easily dealt with.

Joining the domain using a site-to-site VPN

  • Only 1 network adapter can be enabled on the PC joining the domain, and preferably a wired connection.  If any others exist such as a wireless card, disable until domain joined.  On occasion Bluetooth adapters will also conflict, so I recommend disabling them as well.
  • Configure the connecting PC’s network adapter either statically or through DHCP to point ONLY to the domain controller at the corporate office for DNS.  Do not add an alternate external DNS server such as an ISP or router as these will often respond first and name resolution will fail.

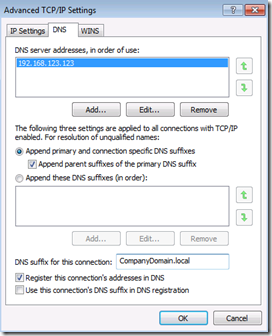

  • In the NIC configuration, under Internet Protocol Version 4 (TCP/IPv4) properties, click advanced, and under the DNS tab insert the corporate internal DNS suffix, such as CompanyDomain.local in the box entitled “DNS suffix for this connection”
  • image
  • Then join the domain using the traditional method of Computer (formerly My Computer) | Properties | Change Settings |  Change | enter the internal domain name | click OK | and you should be prompted for credentials for an account authorized to do so, a Domain Admin account.  If the Domain Controller is a version of Small Business Server the SBS option to use  http://SBSname/connectcomputer  or http://connect most often will not work.  (more detail and screen shots for the joining the domain process can be found below in the using a VPN client section).
  • If you wish to simultaneously import an existing local user profile, you can use ProfWiz as outlined in the following link which will both join the domain and move the profile. Though the article references SBS, it can be used with any Windows Server Version.  https://blog.lan-tech.ca/2011/05/19/sbs-and-profwiz/

Joining the domain using a Windows VPN client

Joining a domain using a VPN client is a little more involved, but not complicated. This method may work with other VPN clients, so long as they have the option to connect to the VPN before logon, but this explanation uses only the Windows built-in VPN client.  Without the ability to connect before logon, there is very little advantage even if you can join the domain, as you would not actually be authenticating to the domain.  I will assume the server end, RRAS, is configured and working for VPN client connections.

  • Log on to the PC you wish to join the domain with a local administrator account
  • Only 1 network adapter can be enabled on the PC joining the domain, and preferably a wired connection.  If any others exist such as a wireless card, disable until domain joined.  On occasion Bluetooth adapters will also conflict, so I recommend disabling them as well.
  • Establish a VPN connection.  If not familiar with doing so:
    • From the network and sharing center choose “Set up a new connection or Network”
    • Select “Connect to a workplace”
    • Choose “Use my Internet connection (VPN)”
    • Enter the public facing FQDN of the corporate VPN server such as VPNserver.MyDomain.com and enter a friendly name for the connection, anything you like.  It is also very important to check the box “Allow other people to use this connection” as you will soon have a domain account which will require access to this VPN connection.
    • image
    • Enter a User name, which ideally is the user that will be using the connection once joined to the domain, but can be any user name that is authorized to connect to the corporate network via VPN.  If you use a name other than the ultimate user of the PC they will simply have to change the user name during in the connection wizard, the first time they try to connect.  Enter the password and choose connect.  For security reasons I don’t recommend checking “Remember this password”.
    • image
    • If prompted for a network type after connecting, choose “Work Network”.

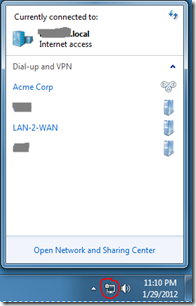

  • Presumably you were able to establish a connection.  However while connected if you did an NSlookup from a command line for the server name, you will see it fails. Try an NSlookup for the FQDN of the server, and it will succeed.  Thus, we need to configure DNS for the VPN clientbefore proceeding.
    • image
    • Disconnect the VPN client

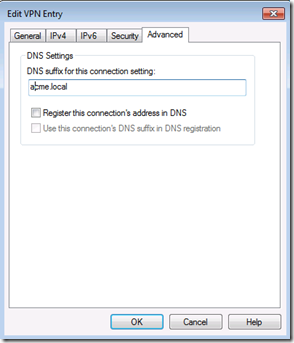

    • In the network connections window right click on the VPN/PPP connection and choose properties | Networking tab | highlight Internet Protocol Version 4 (TCP/IPv4) and choose properties | Advanced | DNS tab | and enter the IP of the corporate DNS server under DNS server addresses and the internal domain suffix such as MyDomain.local in the “DNS suffix for this connection box.  If admins need to connect to the remote client PC for administration by name check the box “register this connection’s address in DNS” but I would discourage this as the IP can change frequently and cause issues.  Also on the “IP Settings” tab leave the option “Use default gateway on remote network” checked, at least for now, so that all traffic is forced to the corporate network while the VPN is connected.
    • image
  • Now you can try joining the domain
    • Connect the VPN client

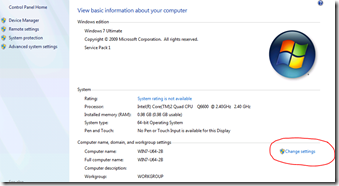

    • Right click on “Computer” (formerly My Computer) and choose properties.
    • In the resulting window select “Change Settings”
    • image
    • Slect “Change” again
    • image

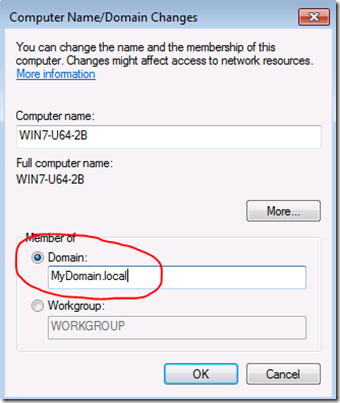

    • Enter the corporate internal Domain name, such as MyDomain.local in the Domain box and click OK
    • image
    • You will be prompted for a domain account with privileges to join a PC to the domain, a Domain Admin.  Enter it and the password and you should receive a message advising you have been joined to the domain.  Be patient it takes a little longer as this is a slow link compared to the LAN.
    • image
    • You now need to reboot the connecting PC.

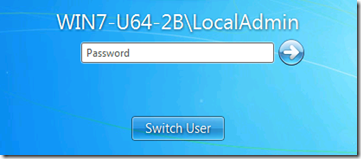

  • In order to authenticate to the corporate network at logon and work as if on the corporate LAN, you need to connect the VPN before logging on to the PC.  When the PC reboots press Ctrl+Alt+Delete as you normally would, and then choose  “Switch User”
    • image
    • You will then be presented with a new option, a little blue icon in the lower right corner.
    • image
    • Clicking this allows you to choose to connect to the corporate network, by using the VPN.  After entering your credentials you will see the familiar VPN connection automatically start, it will connect, and you will be authenticated to the domain.
    • image
    • Logon is a little slower of course due to the slow link, and the first time you connect it will have to set up the local domain profile.  If you make use of redirected my documents, offline files, or have a lot of group policies logon can take a very long time while they apply and sync.  If logon is too slow, you may want to review options available to the remote user.  You will note that if you now try nslookup <servername> works as it should.

Note:  If connecting from Windows 8, please see the following updated article:  https://blog.lan-tech.ca/2013/03/02/windows-8-connect-to-vpn-before-logon/



Depending on the performance of the VPN connection, it is sometimes necessary for the network administrator to “tweak” a few Group Policies for slow network detection. The following policies can assist with this:

Server 2008 / 2008 R2 / SBS 2008 / SBS 2011:
  • Computer Configuration | Policies | Administrative Templates | System | Group Policy | Group Policy slow link detection
  • Computer Configuration | Policies | Administrative Templates | System | Scripts | Run logon scripts synchronously
  • Computer Configuration | Policies | Administrative Templates | Network | Offline Files | Configure slow-link mode
  • Computer Configuration | Policies | Administrative Templates | Network | Offline Files | Configure slow link speed
Server 2003 / SBS 2003 / SBS 2003 R2:
  • Computer Configuration | Administrative Templates | System | Logon | Always wait for the network at computer startup and login
  • Computer Configuration | Administrative Templates | System | Group Policy | Group Policy slow link detection
  • Computer Configuration | Administrative Templates | System | Scripts | Run logon scripts synchronously
  • Computer Configuration | Administrative Templates | Network | Offline Files | Configure slow-link mode
  • Computer Configuration | Administrative Templates | Network | Offline Files | Configure slow link speed



Toast For Our Tables

Remotely change DNS server IP’s

I was recently asked how to change the DNS server IP’s in the NIC configurations of numerous servers, which of course have static IP’s.  Sounds simple right?  Maybe not.

  • You can use Group Policy to do so but apparently it will not work with all O/S’s and it will only work if DNS is working.
  • You can deploy a script but that requires logon or reboot to apply.
  • You use psexec and a text file list of servers with something similar to: “psexec @textfilename netsh interface ip set dns name = “Local Area Connection” source = static addr = 1.1.1.1”  however it requires the NIC name be accurate and it is not always named “Local Area Connection”

One proposed great solution is to use a VBS script by Alexxxandre K8L0 on TechNet.  This uses a text file list of server names or IP’s and updates each in the list.  The article can be found in the following link, but since occasionally the links change or articles ‘disappear’ I have posted the content here, but I take no credit for its design: http://gallery.technet.microsoft.com/scriptcenter/Change-fixed-DNS-IP-of-422415c1

Syntax: cscript SetDNSv2.vbs inputfile outputfile dns_ips
Input file: Put IP or Hostname of server line by line on a text file.
Output file: Is a log of return status “Inputed,Host,Adapter,Return Status”
dns_ips: Ips of DNS Servers separated by commas.
Example: cscript SetDNSv2.vbs inputfile.txt outputfile.txt 10.1.0.10,10.1.0.11,10.1.0.10

‘Set DNS By k8l0
‘By k8l0
If WScript.Arguments.Count = 3 Then
    strInputFile = WScript.Arguments.Item(0)
    strOutputFile = WScript.Arguments.Item(1)
    strNewDNS = WScript.Arguments.Item(2)
Else
    wscript.echo “Sintaxe: cscript SetDNSv2.vbs inputfile.txt outputfile.txt 10.1.98.64,10.1.98.36,10.1.18.24”
    wscript.quit
end if

On error resume next

Const ForReading = 1
Const ForAppending = 8

Set objFSO = CreateObject(“Scripting.FileSystemObject”)
Set objTextFileIn = objFSO.OpenTextFile(strInputFile, ForReading)
Set objTextFileOut = objFSO.OpenTextFile(strOutputFile, ForAppending, True)

wscript.echo “Host        Adapter        Return Status”
wscript.echo “—-        ——-        ————-”
objTextFileOut.WriteLine(“Inputed,Host,Adapter,Return Status”)

Do Until objTextFileIn.AtEndOfStream
    strComputer = Trim(objTextFileIn.Readline)

    Set objWMIService = GetObject(“winmgmts:” & “{impersonationLevel=impersonate}!\\” & strComputer & “\root\cimv2”)
    Set colNicConfigs = objWMIService.ExecQuery(“SELECT * FROM Win32_NetworkAdapterConfiguration WHERE IPEnabled = True”)

    For Each objNicConfig In colNicConfigs
        If Not IsNull(objNicConfig.DNSServerSearchOrder) Then
            strReturn = “”
            arrNewDNSServerSearchOrder = Split(strNewDNS,”,”)
            intSetDNSServers = objNicConfig.SetDNSServerSearchOrder(arrNewDNSServerSearchOrder)
            If intSetDNSServers = 0 Then
                strReturn = “””” & “Replaced DNS server search order list to ” & strNewDNS & “.” & “”””
            Else
                strReturn = “Unable to replace DNS server search order list.”
            End If
        Else
            strReturn = “DNS server search order is null. Nothing changed!”
        End If

        strDNSHostName = objNicConfig.DNSHostName
        strIndex = objNicConfig.Index
        strDescription = objNicConfig.Description
        strAdapter = “Network Adapter ” & strIndex & ” – ” & strDescription
        wscript.echo strDNSHostName & VBTab & strAdapter & VBTab & strReturn
        objTextFileOut.WriteLine(strComputer & “,” & strDNSHostName & “,” & strAdapter & “,” & strReturn)
        Next
Loop

objTextFileIn.close
objTextFileOut.close

wscript.echo “Finished!!!”

SBS connect / connectcomputer wizard fails

Generally when a computer cannot join the domain using http://connect (SBS 2008 & 2011) or http://SBSname/connectcomputer (SBS 2003) it is due to inability to correctly resolve the name of the domain controller in a timely fashion. Below is a list of common reasons for the connect wizards to fail.

In an SBS domain, the server should be the DHCP server, and if so, items 3 and 4 below should be automatically set through DHCP.  However if addressing is statically assigned or you are using a router you may need to make changes. Items 3 and 4 are also basic networking requirements of a Windows Domain, not just important for joining the domain.

1. If there is more than 1 network adapter installed, wired or wireless, disable all but 1 until domain joined.  If at all possible, make it a wired connection, not wireless.

2. Many new PC’s also show a Bluetooth connection under “Network Connections”, this should be disabled as well while running the wizard.  If you are using a Bluetooth mouse and/or keyboard these will have to be temporarily replaced.

3. Make sure, using IPconfig /all, that the client’s DNS points ONLY to your internal DNS servers, in this case the SBS.  Do not allow a router or ISP to be added even as an alternate.

4. IPconfig /all should also show next to “Primary DNS Suffix”” your internal domain suffix such as MyDomain.local.  If not you need to add the domain suffix to the client machine. To do so insert it in the “DNS suffix for this connection” box under the DNS tab of the NIC’s advanced TCP/IP IPv4 properties

5. If there are any 3rd party firewalls or security suites installed, disable them until joined to the domain.  The Windows firewall should not need to be disabled.

6. If still failing add the connect web site to the “trusted” sites list in Internet Explorer under Tools | Internet Options | Security |trusted Sites

7. If all else fails you can skip the wizard and use a 3rd party utility called ProfWiz.

It is important to note that using the connect and connectcomputer wizards is very important.  With SBS 2003 it is especially critical to do so as it performs a long list of tasks other than just joining the domain.  It copies the local user’s profile, configures the user and computer environments, changes permissions, installs SBS related features, makes changes to networking, and much more.  Susan Bradley’s blog outlines this in detail: “So exactly “what” does connect computer do anyway?”  However SBS 2008 and SBS 2011 control most of this through Group Policy.  The key bonus feature with the SBS 2008/2011 wizard is its ability to import current users’ local profiles. Though I still strongly recommend using the wizard, it will only import a local workgroup profile.  If the wizard fails or you are wanting to import a previous domain profile, you may want to consider using Profwiz.  Profwiz by forensit.com a simple little tool that will join the PC to the domain and reset the permissions of an existing profile allowing it to be used as the new domain profile (i.e. import users settings like desktop items, favorites, Documents, and application configurations). For instructions on downloading and running see:  https://blog.lan-tech.ca/2011/05/19/sbs-and-profwiz/

Connect to Windows VPN at Logon

The internet is littered with questions about VPN connection and authentication issues as a result of using cached credentials.

  • How can I automatically connect my Windows VPN at start up?
  • Why do I have to re-enter my user credentials when connecting my corporate VPN?
  • How do I get Group Policy to apply to VPN connected users?
  • How do I use my work domain user account when I work from home using a VPN?
  • Why won’t my logon script run when connecting by VPN?

You can connect from any PC using a VPN, but in most cases you do so after having logged onto the PC first. If this is a “domain joined” corporate PC, when you logon without the domain controller present, you are not authenticating to the domain but rather using the credentials cached on the local computer from a previous logon.  As a result Group Policy cannot be updated, logon scripts are not applied, and most often you have to re-enter your user credentials when you do choose to connect to the office via VPN.

It is possible to connect to the VPN at logon resulting in an experience similar to that of the office, except of course for the reduced file transfer speed,  However, there are few conditions that must be met to do so:

  1. This applies only to the Windows VPN client. Newer Cisco VPN clients and a few others do offer methods to connect the VPN before logon, but they use different processes.
  2. The computer must be a member of the domain, and therefore Pro, Ultimate, or Enterprise versions of the operating system.  At logon you will be providing domain credentials which are automatically passed to the local logon, thus they must be the same.  Using the same username and password is not enough as logon credentials include domain or computer names.  Domain\JDoe is not the same as LocalPCname\JDoe.  If the computer is not already a member of the domain, it is possible to join a remote domain using the VPN connection.  To do so please see:  https://blog.lan-tech.ca/2012/07/25/how-to-join-a-windows-domain-using-a-vpn/
  3. Should the PC not be domain joined and you wish to automate the VPN connection, after logon, please see: https://blog.lan-tech.ca/2013/06/08/rasdial-automate-vpn-connections/
  4. When you create the VPN connection you must check the box “allow other people to use this connection”.


Having met these conditions, at logon there is now an option to connect using the VPN during logon.

Windows Vista and Windows 7:

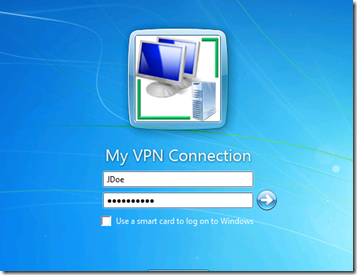

At logon select “Switch User” and a new blue icon will appear in the lower right next to the familiar red Shut Down icon.


Clicking the icon will allow you to use the VPN connection, and simultaneously connect and authenticate to the corporate domain, and log on to your local PC


Windows XP:

At logon after pressing ctrl+alt+del, if you click the “Options” button there will new be a check box “Logon using Dial-up connection” which will use the VPN connection, and simultaneously connect and authenticate to the corporate domain, and log on to your local PC


Windows 8:

Please see the more recent post to enable on a Win 8 PC

Slow Links:

Depending on the performance of the VPN connection, it is sometimes necessary for the network administrator to “tweak” a few Group Policies for slow network detection.  The following policies can assist with this:

Server 2008 / 2008 R2 / SBS 2008 / SBS 2011:

  • Computer Configuration | Policies | Administrative Templates | System | Group Policy | Group Policy slow link detection
  • Computer Configuration | Policies | Administrative Templates | System | Scripts | Run logon scripts synchronously
  • Computer Configuration | Policies | Administrative Templates | Network | Offline Files | Configure slow-link mode
  • Computer Configuration | Policies | Administrative Templates | Network | Offline Files | Configure slow link speed

Server 2003 / SBS 2003 / SBS 2003 R2:

  • Computer Configuration | Administrative Templates | System | Logon | Always wait for the network at computer startup and login
  • Computer Configuration | Administrative Templates | System | Group Policy | Group Policy slow link detection
  • Computer Configuration | Administrative Templates | System | Scripts | Run logon scripts synchronously
  • Computer Configuration | Administrative Templates | Network | Offline Files | Configure slow-link mode
  • Computer Configuration | Administrative Templates | Network | Offline Files | Configure slow link speed

Client Deployment:

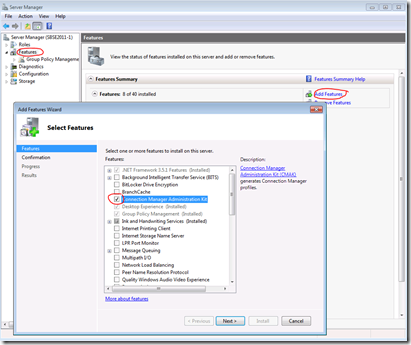

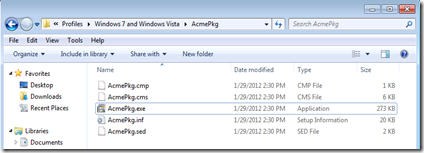

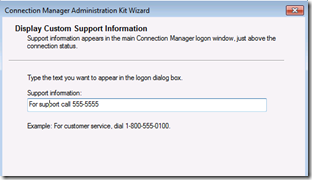

Network administrators may also want to considered creating a deployable VPN client for consistency, security, and with a company logo.  An earlier post outlines how to do so in detail:

https://blog.lan-tech.ca/2012/01/30/windows-vpn-client-deployment/

Configuring Hyper-V Core

There are already dozens of articles relating to configuring Microsoft’s Hyper-V Server 2008 R2 (the free core version), however a colleague’s intimidation of command line server management inspired me to post my notes to ease his mind and perhaps those of a few readers as well.  Yes, it is a command line only version of server 2008 R2, with only a 15 line/option GUI to assist with the most basic configurations……..


Yet, after some minor configuration and enabling some basic services, you can manage the server in a very similar way you would manage others servers with; Hyper-V Manager, administrative tools, remote access, a file explorer, and even a web browser.

It is worth noting that there are definite advantages to using this version of Hyper-V.  It is free, it supports more than 32GB of RAM (server 2008 R2 standard does not, you need Enterprise or Datacenter editions), smaller footprint, and a somewhat limited attack surface.

Notes:

  • I am assuming Hyper-V core is successfully installed and you are at the point of configuring, if not the following links may help you get to this point Test Hyper-V compatibility, Step-by-Step Guide to Getting Started with Hyper-V
  • The assumption in this configuration is the Domain Controller and DNS server will be a virtual machine on the Hyper-V host. As a result it is recommended the Hyper-V host is not joined to the domain as no domain logon server will be available until after the guest VM has been started.
  • “Management PC” refers to the PC, or server, from which you wish to manage the Hyper-V host
  • All command line entries below, on both server and management PC, must be done from an elevated command prompt. On the server the default is elevated, which is confirmed by the “Administrator” on command window title bar

Server Configurations (Hyper-V host):

Run native Hyper-V GUI configuration tool:

  • The configuration tool (as in image above, should automatically start at logon but if not, from a command line, enter sconfig
  • Item #1: Leave as a workgroup
  • Item #2: Enter the computer name
  • Item #8: Configure the network: Use a static IP.  I recommend at least primary server be an internal DNS server, secondary an ISP. (Keep in mind on a domain joined server/PC you should not combine internal and public DNS servers, but this is not domain joined).  Best practices suggests 2 NIC’s should be enabled, one for management and the other for use by VM’s, though this is not necessary.
  • Item #9: Set date and time
  • Item #5: Set Windows update settings auto or manual.
  • Item #6: Download and install all updates, reboot as necessary
  • Item #3: Add any local admin accounts. I recommend adding new account with a name matching the login account of the remote management PC.  The names must match for some services to work.
  • Item #4: Configure remote management by enabling sub-options 1 to 3
  • Item #7: Enable remote desktop access (note this is still command line only)
  • Item #15 Exit to a command line

DNS:

As stated the Hyper-V machine is not a member of the domain, therefore it is recommended the following additions be made to assist with name resolution

Use the Hosts file to allow the Hyper-V host to resolve the name of the management PC.  From an elevated command prompt , open the Hosts file using Notepad by entering: notepad c:\Windows\System32\drivers\etc\hosts .  Add a record in the Hosts file for your management PC/s using

IP <tab> Pc’s DNS name <tab> # a note (optional) <enter>
eg: 192.168.123.123     PCname.MyDomain.local    # management PC

(Note: it is very important hit return, after every entry including the last line, and then save. For more information about Hosts and Lmhosts files, and their syntax see: https://blog.lan-tech.ca/2012/04/26/hosts-and-lmhosts-files/

Add the domain suffix to the domain search list within the registry to further assist with DNS name resolution.  Start the registry editor using regedit and locate the following registry key:

     HKLM\System\CurrentControlSet\Services\TCPIP\Parameters\SearchList

Then add your domain suffix such as mydomain.local (separate multiple suffixes, if needed, with commas)

Permissions:

To configure additional permissions on the Hyper-V host download Hvremote.wsf from:   http://archive.msdn.microsoft.com/HVRemote  to a USB drive or CD.  Then from a command line copy HVremote to local directory such as Temp folder.  DOS commands are as follows (assume HVremote is on a USB drive labeled D:

cd\
md Temp
copy D:\FolderName\hvremote.wsf  C:\Temp\hvremote.wsf

Run the following commands from the directory where hvremote is located to grant Hyper-V administrators the necessary permissions to do so.  This asdds the admin to the “Distributed COM User’s group”. Again from an elevated command prompt, run the following command using the user you created under Item #3 above in the initial configuration GUI.

     Cscript hvremote.wsf /add:user

If this is the first time hvremote has been used to add a user a reboot may be required

Firewall:

The necessary firewall exceptions should have been enabled by Item #’s 3 & 7 above.  You may also want to be able to ping (IPv4) the server for testing. To do so from a command line enter:

netsh firewall set icmpsetting 8

Or use the new command for “Windows Firewall with advanced Security”

     netsh advfirewall firewall add rule name=”ICMP Allow incoming V4 echo request” protocol=icmpv4:8,any dir=in action=allow

(Note: if cutting and pasting the above command, you will have to substitute the quotation marks using your keyboard.  This site’s/font’s quotation marks are not standard ascii characters)

For additional firewall information relating to pings see:  http://dpotter.net/technical/2010/02/enable-ping-on-windows-server-2008-2/


Management PC Configurations:

DNS:

If the PC is a member of a domain, you can add a Host (A) record to the DNS management console for the Hyper-V host, or you can make an entry in the management PC’s Hosts file similar to the instructions for the server. This will ‘point’ this to the server such as:

IP <tab> Server’s DNS name <tab> # a note (optional) <enter>
eg: 192.168.123.123     HVServerName.MyDomain.local     # Hyper-V host

Permissions:

As on the Hyper-V host, download HVremote from http://archive.msdn.microsoft.com/HVRemote  or copy from your USB Key to a local directory as below:

     cd\
md Temp
copy D:\FolderName\hvremote.wsf C:\Temp\hvremote.wsf

Using an elevated command prompt run the following commands from the directory where HVremote is located.  Where the Hyper-v host is not part of the domain you must enable anonymous DCOM access using:

     Cscript hvremote.wsf /mode:client /anondcom:grant

This one command must be run from an non-elevated command line:

Cmdkey /add:ServerComputerName /user:ServerComputerName\UserName /pass:UserPassword

Firewall:

There are 4 Hyper-V Management Client firewall exceptions that need to be enabled.  Running the following command, from an elevated command prompt, will do so:

     Cscript hvremote.wsf /mode:client /FirewallHyperVClient:Enable

You also need allow rules for MMC exceptions (management consoles) which can be applied with:

    Cscript hvremote.wsf /mode:client /mmc:enable

If you have other 3rd party firewall software installed, you need to manually configure it with the same exceptions.

If you wish to use the Disk Management component of the Computer Management MMC for the remote host, you need to enable the inbound “Remote Volume Management – Virtual Disk Service Loader (RPC)” exception with:

     netsh advfirewall firewall set rule name=”Remote Volume Management – Virtual Disk Service Loader (RPC)” new enable=yes

You also have to set the “Virtual Disk service” on the Hyper-V server to Automatic and start it.

sc config vds start= auto
sc start vds
    (not needed if rebooting – will automatically start)

Reboot:

To apply all changes a reboot of the PC is recommended.

Testing connectivity:

When complete test and review the output using the commands below.  For details and troubleshooting download the documentation for HVRemote from:  http://archive.msdn.microsoft.com/HVRemote

From the server:

     Cscript hvremote /mode:server /show /target:clientcomputername

From the client PC:

Cscript hvremote /mode:client /show /target:ServerComputerName


Remote Management Tools:

RSAT tools:

Download and install RSAT (Remote Server Administration Tools) on the management PC making sure you have the RSAT version compatible with that PC’s operating system. The link for Win7 SP1 is below.  With these tools you can now connect the Hyper-V host and manage it from a PC using  all those familiar tools like Computer Management, Disk Management, Windows Firewall with Advanced security, Task Sheduler, etc., and of course the most important; Hyper-V manager which will allow you to create and manage your VM’s the same as you would if you had the full GUI version of Server 2008 R2 as a host.

http://www.microsoft.com/download/en/details.aspx?id=7887

Remote Console (RDP):

You can access the Hyper-V console (still command line only) using a standard RDP connection. You can also install “Portable Apps” which you can then run from an RDP session.  See further down in this list of Remote management tools.

     Mstsc -v:<Hyper-V host name>

Portable Apps:

You can run standard “portable apps” on the console, or during a remote desktop session such as:

Windows Explorer Equivalent A43:

http://www.alterion.us/a43/index.html

Firefox Web Browser (for security reason web browsing from the host is not recommended):

http://portableapps.com/apps/internet/firefox_portable

Others:

http://www.portablefreeware.com/all.php

Powershell:

To remotely run PowerShell you will need Powershell 2. which is available from Windows updates. To install and enable please see the following article http://geekswithblogs.net/twickers/archive/2009/11/04/136013.aspx  With it from the Host console, or remotely, you can manage many services using scripts/cmdlets from:

http://pshyperv.codeplex.com/

Others:

http://www.portablefreeware.com/all.php

PSExec:

PSExec is a tool developed by Sysinternals, now Microsoft that allows you to run DOS commands on remote machines:

http://technet.microsoft.com/en-us/sysinternals/bb897553

Hyper-V Monitor Gadget:

A great desktop gadget for monitoring the status of your Hyper-V servers, status and perfomance, as well as the ability to start and stop.  Requires permissions and services as outlined earlier.

http://hypervmonitor.codeplex.com/


Additional Resources:

Configure Hyper-V Remote Management in seconds

http://blogs.technet.com/b/jhoward/archive/2008/11/14/configure-hyper-v-remote-management-in-seconds.aspx

Full HVRemote documentation and download:

http://archive.msdn.microsoft.com/HVRemote/Release/ProjectReleases.aspx?ReleaseId=3084

Install and Configure Hyper-V Tools for Remote Administration

http://technet.microsoft.com/en-us/library/cc794756(WS.10).aspx

How to use the “netsh advfirewall firewall” context

http://support.microsoft.com/kb/947709

How to Enable Remote Administration of Server Core via MMC using NETSH

http://blogs.technet.com/b/askds/archive/2008/06/05/how-to-enable-remote-administration-of-server-core-via-mmc-using-netsh.aspx

Hosts and LMHosts files

Though rare, there still is an occational need or advantage to using Hosts and LMHosts files.  Though simple text files, the syntax used is critical.  The following is a repost from an older blog of mine.  I have done so in hopes that it may be helpful to some folk, and also it will be useful in and upcoming post regarding Hyper-V configuration and management.

There are two files in the %systemroot%\system32\drivers\etc directory that can be used for name resolution. The Hosts file, used for DNS name resolution, and the LMHosts.sam file used for NetBIOS name resolution. In an age where DNS dominates your network both locally and throughout the Internet, these two files are seldom ever used, but they can be very useful in a few situations. Both are simple text files that match names to IP addresses, and are very easy to create and implement. Most people are familiar with these files, but are often frustrated when they do not work as expected. This is usually due to the fact that they have some very simple, but specific requirements, for them to work at all.

LMHosts (NetBIOS names):

The primary use today for an LMHosts file, is for name resolution over a VPN. If DNS is configured on the host and client machines there should be no need of static text files for resolving names, but it does work well, and many folks uses them as a dependable simple solution. The catch is there are a few gotcha’s you need to be aware of:

  • The LMHosts file in it’s default form, is named lmhosts.sam The .sam represents sample. If you are planning on using this file it needs to be saved without a file extension – lmhosts. Be careful if using a text editor like NotePad as it will add a .txt file extension to the name. The safest method is to save the file using quotes, “lmhosts” to assure no extensions are added.
  • Text following a # in the LMHosts file is a comment and can be ignored or deleted.
  • A typical entry would look like:

192.168.100.101 COMPUTERNAME #PRE #my notes

  • When making a new entry you must hit enter at the end of the line, which adds a “carriage return”
  • Use the Tab key between items in each line rather than spaces (recommended but not necessary), but there must be a space.
  • Though it is not needed, adding the #PRE parameter or extension will load the entry into the local NetBIOS name cache when the computer boots. This allows for a slightly faster resolving of the name, before it has been added to the cache.
  • Most entries such as #PRE, #DOM, DOMAIN names and such are case sensitive. Always use uppercase to be safe.
  • It is a good idea to add the domain name as well. This requires two lines, and uses extremely critical formatting. A sample would be:

192.168.100.10 DCNAME #PRE #DOM:YOUR-DOMAIN
192.168.100.10 “YOUR-DOMAIN x1b” #PRE

There must be exactly 20 characters, including spaces, between the quotes in “YOUR-DOMAIN x1b”, and the spaces need to be between the domain name and the x1b. The domain name used is the NetBIOS name, not the FQDN. If your domain name exceeds 15 characters, you must truncate it at the 15th character, it will still work.

If you find this last step tedious, the University Of Sait Louis has a little Java script that will create these two lines for you: http://bflinux.slu.edu/LSI/tools/lmhosts.html

Hosts (DNS names):

The Hosts file today seems to be more used for blocking unwanted web sites. This is done by simply entering the website address and substituting the IP address with the localhost IP address such as:

127.0.0.1 www.unwantedsite.com#advertising site

There are subscription services that will actually update your Hosts file, according to a schedule, with a list of known unwanted sites.

Another handy use of the Hosts file is to create abbreviations for your own use. For example quick access to a website like Google can be achieved adding an abbreviation like ‘G”, or your firewall with ‘F”, or I frequently uses it for accessing client sites with remote desktop using 3 letter acronyms such as ACL for Acme Corp Ltd. :

64.233.187.99 G #Google

192.168.100.254 F #my firewall

123.123.123.123 ACL #Acme Corp Ltd

Most of the rules that apply to the LMHosts file, apply to the Hosts file as well:

  • The Hosts file already has no file extension, so there is no need to change it like the LMHosts file. Just be careful when editing you don’t accidentally add one such as .txt when using NotePad or a similar editor.
  • Text following a # in the Hosts file is a comment, and can be ignored or deleted
  • A typical entry would look like:

123.123.123.123 ftp.acme.com#company FTP site

  • When making a new entry you must hit enter at the end of the line, which adds a “carriage return”
  • Use the Tab key between items in each line rather than spaces (recommended but not necessary), but there must be a space.

Keep in mind when editing these files you can run into conflicts, or ineffective changes if you do not reboot or purge the local name caches. To clear the NetBIOS cache ( and PREload), at a command line enter (R is case sensitive):

nbtstat -R

To clear the DNS cache, at a command line enter:

ipconfig /flushdns

For the record, the Hosts file can also be used for IPv6 addressing. Vista for example includes the IPV6 localhost entry, by default:

::1 localhost

Windows VPN Client Deployment

      subtitled: What happened to the SBS Connection Manager?

VPN name resolution is a common problem for many IT folk.  I have addressed in in previous blogs by manually configuring the VPN client to point to the corporate server for DNS, and adding the corporate domain suffix.  This is not practical as it has to be done on every computer on which the VPN client was configured.

Small Business Server 2003 had a very nice little wizard that would create a deployable VPN client called “Connection Manager” which contained server connection information and allowed for proper name resolution over the VPN.  Though the missing feature from subsequent SBS versions inspired this article, it can be used to create a deployable VPN client for any Windows Server.  The SBS wizard basically ran a mini version of a standard Windows tool called CMAK.

Firstly you need to install CMAK, the Connection Manager Administration Kit.  To do so, on a 2008 or newer server, open Server Manager under Administrative Tools, choose Features, and Add Features.  In the features wizard choose Connection Manager Administration Kit, and complete the wizard.


Though there are many configurable options and features that can be added with CMAK, for the purposes of this article only the basics will be configured to allow for VPN name resolution, automatic installation, and to try to replicate the old SBS 2003 Connection Manager experience.  One of the additional advantages of the Connection Manager Client is it limits the options with which the client can “tinker”, thus reducing support calls and increasing security.

In this example CMAK is being run on a 64bit machine. The deployable VPN client created can only be used on other 64bit machines. If you need to deploy on a 32bit machine you will need to install and run CMAK on a 32bit computer/server.  CMAK may not available from the built-in windows options on older operating systems.  If so, it can be downloaded as part of the Windows Server 2003 Administration Tools Pack (32bit) http://www.microsoft.com/download/en/details.aspx?displaylang=en&id=16770

Start The Connection Manager Administration Wizard from Administrative Tools, accept the UAC warning, click next, and select the O/S on which the client will be deployed, remembering the above warning about 32/64 bit.


Select New Profile,


Enter a ‘Friendly’ name for the connection and a file name (<9 characters) for the deployment package.


Rather than cluttering this post with unnecessary images, accept the defaults on the next two pages, “do not add a realm name to the user name” and leave the merge profiles boxes empty. In the next window, as per the image below, check Phone book from this profile, always use the same VPN server, and insert the public FQDN or IP of the VPN server.


Next highlight your new connection and choose edit.  Under General select Only IPv4 addresses.  If you like, for added security you can disable file and printer sharing, which blocks access to shares on the connecting client’s computer while connected to the VPN.


Under IPv4 add the internal IP for your corporate DNS server.  If you have multiple corporate DNS servers you can add a second, and if you have WINS servers you can add those as well.  Do not add public DNS servers here.  I recommend checking “Make this connection the client’s default gateway” (disabling split-tunneling) which blocks access to to the client’s local LAN while connected to the VPN.  By doing so Internet access is actually made via the VPN, rather than through the local router.  One reason you may need to un-check this is it also blocks access to a local networked printer, i.e. one that is not physically attached to the connecting computer.  Leave “Use IP Header compression” checked.  Note that in a user created VPN client using the tools built into a Windows PC, the “default gateway” option can be changed.  When created with CMAK it cannot be changed.  This is intentional for security reasons.  Split-tunneling, allowing the client simultaneous local and remote network access, is considered a security risk.


Under security you can leave the defaults or change to “Only use Point to Point Tunneling Protocol (PPTP)”.  If you are connecting to an old server it may also be necessary to also check CHAP authentication, but this is less secure than MS-CHAP v2, so only do so if absolutely necessary.  All 2008 and newer servers use MS-CHAP v2 by default.


Under advanced add the internal corporate domain suffix.  Check “Register this connection’s DNS address in DNS” if for some reason LAN clients need to resolve the name of the remote computer.  I recommend not doing so if not needed as it adds unnecessary entries to DNS that may not be cleaned up if DNS scavenging is not properly configured.  Select OK, Next, and move on to the next window.


We are not using “phone books” so uncheck “Automatically download phone book updates”


From here accept all defaults in the next 4 windows; Configure Dial-up Networking, Specify Routing Tables, Configure Proxy Settings, and Add Custom Actions.

Note: it is assumed the server VPN configuration is basic, assigning IP’s in the same subnet for VPN clients as LAN clients, which is typical of SBS.  However, if the VPN clients are assigned addresses outside of the LAN subnet, and you want to access resources on the corporate LAN other than the VPN server, you will need to add a routing table file, on the “Specify Routing Tables” page, to have the route pushed out to VPN clients.

Though not necessary at all you may want to add a custom graphic or logo to the connection client. This is done on the “Display Custom Logon Bitmap” page followed by the ability to add a custom graphic in the phone book (list of connections), and on the 3rd related page you can choose to use  custom Icon for the deployed VPN connection.

Leave the “Include Custom Help File” as default, and under “Display Custom Support Information”.  You may want to add contact information. This is displayed on the VPN connection client where they enter their user name and password, when trying to establish a connection.


Accept the defaults in the remaining windows; “Display a Custom License agreement” and “Install Additional Files…”.  In the final Window “Build the Connection Manager Profile and its Installation Program” leave Advanced uncheck, and assuming you do not wish to make any changes, click Next, and Finished.  The deployable package will be saved in a folder named profiles in the CMAK folder, the default location being: C:\Program Files\CMAK\Profiles\Windows 7 and Windows Vista\   You only need to copy the .exe file to the client computer, in this case AcmePkg.exe


To configure the client, simply double click on the .exe file.  You will be prompted if you want the client to be available to all users or just the current user.


Click OK, and wizard will complete, add a connection icon to the desktop, add the connection to task bar network icon………


…….and launch the VPN client.

If you wish to connect enter the user name of a member of your VPN User group, their password, and internal domain name.  The domain name does not have to be present just to connect to the VPN, but in most cases if the PC is not domain joined, it needs to be there to access files using server names, rather than IP’s.


You should now have access to resources on the remote server, assuming the VPN at the server end is properly configured, and you have the appropriate Share and NTFS/Security permissions on the server to do so.

If needed, I have bloged in the past about configuring the VPN server.

Configuring a Windows SBS 2003 as a RRAS/VPN Server

SBS 2011 Essentials – Configuring VPN access

Configuring a Windows 2003 RRAS/VPN Server with 1 network adapter

Google Apps and DomainsAtCost Registrar

Probably only a select few will encounter this problem as it would only affect those setting up DomainsAtCost as a Domain registrar and DNS manager, in combination with Google Apps. However, there are many posts stating folk are unable to configure Google Apps with this registrar as Google cannot verify the domain ownership due to it not recognizing the necessary DNS Txt  record. Perhaps the few having problems ‘resolving’ this issue may find it helpful.

Before Google will activate your new Google Apps account it understandably needs to verify domain ownership. There are several ways to do so relating to your web site but if you do not have a website for your domain, you are limited to adding a DNS record with whomever manages DNS for your Domain. In the past Google requested you create a Host [A} record, but a year ago they switched to using Txt records. The Google instructions are simple and straight forward, you just enter a lengthy 68 character text string in the “Text” box and then either leave the “Host” box empty or enter an @ symbol.  (see: http://www.google.com/support/a/bin/answer.py?answer=183895 )image

However if you are with DomainsAtCost and using their Advanced DNS Management the @ symbol is the catch. Their site instead requires you manually enter the domain name yourdomain.abc in the Host field. Doing so will very quickly update DNS and allow Google apps to verify your domain ownership. The DomainsAtCost site will accept the @ but it will not be resolvable by internet based DNS servers. i.e. it doesn’t work. You can test if your Txt record has propagated to public DNS servers by entering  txt:yourdomain.abc  in the MX lookup box at http://www.mxtoolbox.com/

Once domain ownership has been verified by Google you can continue the set up by adding your MX records to your DomainsAtCost DNS configuration. It is interesting though that in the DomainsAtCost Host field for the MX record, which does require the domain name, if you insert the @ character when you save it it will automatically convert to the domain name. This does not happen in the Txt record Host field.

Tag Cloud
